现货供应 SHS螺纹塞规 M4P0.7-6H GPNP 昆山友硕代理

 极限螺纹量规 ISO方式 JISB0251?0252

Limit thread gauge of gauging system for ISO class

    平行螺纹量规一般的方式是极限式。利用量规的通、止规管理产品螺纹的极限，保证精确度。极限式量规大致可以分为ISO等级测量方式和以前的JIS等级测量方式。以前的JIS测量方式在量规的止端有检查用和加工用的区别。ISO测量方式则没有这样的区别，他完 全被简单化了。测量外径用的卡规也是一样的。具体使用方法为界限螺纹量规的通规可以轻松穿过，止规的螺纹拧进不到2圈的话，这样测量等级则是合格的。

  In  the thread gauges system,the limit type is most common.Thread of  workpiece is ensured by controlling the GO and NOT GO limit.The   types  of limit thread gauges systems are broadly divided into ISO   class and  conventional JIS class.There were two different types of conventional  JIS gauges,one for inspection and one for production   use.The ISO system is simpler and does not have two type

• ISO等级的美标螺纹，管用平行螺纹用的量规都适用。

     Gauging system for ISO class Metric,Parallel pipe (G)

•GP,GR等用手拧进螺纹，并轻松的穿过。

       Screw this gauge in a worked thread by hand smoothly.GP,GR must go through over the whole length of thread.

• NP,NR等用手拧进螺纹，螺纹拧进多不超过2圈。

       Screw this gauge in a worked thread by hand smoothly by hand NP,NR shall not be screwed in it more than two revolutions from either sides.

 • GW,NW等用手拧进的同时，螺纹拧进多不超过一圈。

       GR,NR shall not be screwed in more than one revolution from either sides when screwing this check plug smoothly.

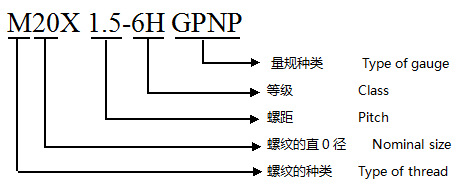

订购时请确认以下规格，并向本公司的各销售代理点采购。
